Faster. Stronger. Easiest to Use. The all-new XRC Gen3 Winch by Smittybilt has been designed from the ground up with innovative, user-friendly features and improved power efficiency. The 7.0 horsepower motor boasts an average line speed increase of 12% over its Gen2 predecessor, adding more speed and power with less AMP draw at load. The ergonomic remote controller has a Load Indicator Warning System, so you will always know how much your equipment can handle. Winching in dark conditions is also a breeze with the remote's built-in flashlight. If additional light is needed, a 12-volt power post is located on the control box. Two magnets are built into the controller for easy placement on any metal surface, leaving it out of the way when not needed. A high-viz clutch lever features large lettering, allowing you to see whether your winch is engaged/free spooled at a glance. Stylish body armor can be detached or used to customize your winch to your vehicle. The XRC Gen3 winch is available with 9.5k and 12k load-capacity options, and the COMP Series upgrade includes a synthetic rope and aluminum hawse fairlead. Buy with confidence these winches are backed by a lifetime mechanical warranty, a 5-year electrical warranty, and Smittybilt's legendary customer service.
When it comes to electric recovery winches, some products stand out above the rest. For the toughest duty and most challenging jobs, you should head over to 4WheelParts.com and see what this online store has to offer. There's a lot to like about the offerings here, especially the Smittybilt 98612 winch. This product will come in handy when you need to come to the rescue by pulling motorists out of trouble.
To get another vehicle out of thick mud or a deep ditch, you need something heavy-duty, durable and dependable. This is exactly what you'll get, and more, from the smittybilt XRC gen3 12K comp series winch with synthetic cable. With the power to handle loads of up to 12,000 pounds, this winch can do just about anything you need it to. It boasts a 7-horsepower motor ad a three-stage planetary gear system to quickly and efficiently pull in stranded vehicles. There's also an onboard lighting system, so you'll never have to shy away from jobs at night long after the sun has set. You'll also love the fact that the smittybilt gen3 12k winch has forged gears and a silicon steel plate rotor. Even better, the product is waterproof, making it effective even in heavy rains. It has a synthetic cable and detachable body armor.
Reasons to Shop at 4WheelParts.com
You could try your luck at the local auto parts store for a Smittybilt winch recovery kit. But you'll be hard-pressed to find the quality, service and selections that you'd experience at 4WheelParts. You only have to type in the year, make and model of your truck to find a compatible product that you know will fit on your vehicle. The winches are under warranty, too, so you know that if something goes wrong, you can get a free replacement. If you want your item delivered right to your home, you can choose that easy option. Or, if you prefer, you can pick it up at a local store. Don't shy away from contacting customer service if you have questions or concerns with your order too.
The Smittybilt XRC Gen3 12k comp series winch will get the job done time and again. Purchase yours today at 4WheelParts.
Easy to install and the synthetic rope makes a smooth retrieval. Awesome product and a great price. Great service again from 4WP!
By Sam G
Very happy with it so far! Pretty easy to put together and install.
By Side Chick
from Meridian, ID
5.0Comparable to other 2000 winches.

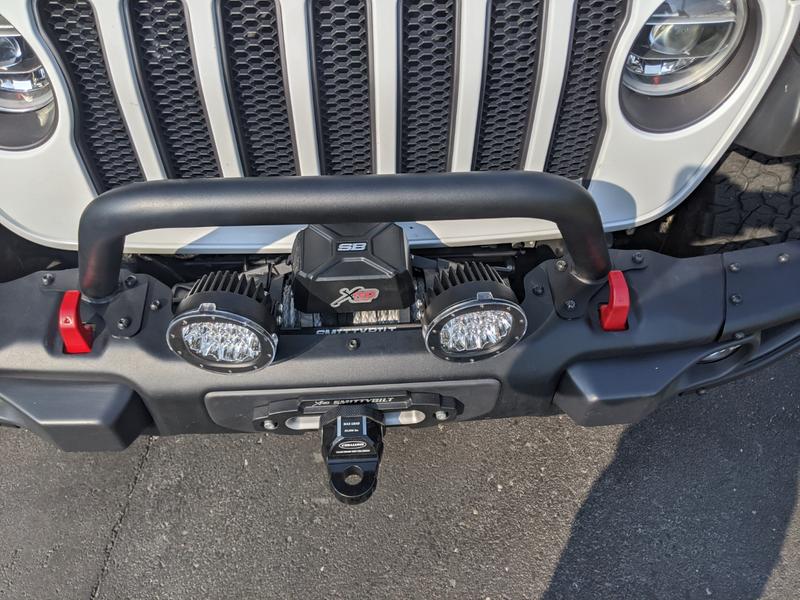

Purchase the Smittybilt XRC Gen1 front pumper and the XRC Gen 3 winch for my 2020 Jeep Rubicon unlimited. Everything fit well the winch control box must be mounted on the included side mounting bracket. The control box wires just loop down and back up to the attach points very tight fit see included photos. Also the winch must be mounted on the forward bolt holes.
4.0Great winch for the money!
Rope came with the permanent shackle/hook. Had to use a cut off wheel to remove it and then install a factoid 55 one. Install was straight forward, used it to pull me jeep out of a mud pit, worked great! Didn’t even hesitate while working.
from Oshkosh, wi
5.0Strong and fast !
Great winch ! tried this weekend and help a Gladiator in the mud with no problem.
Which one lasts longer, the steel cable or synthetic rope? I just bought a new 2021 JL Jeep Wrangler Unlimited Rubicon with the steel bumper group and am going to get a 12k lb. winch but wasn’t sure which system has the best longevity and durability?
Answer this question
Synthetic rope is a great product for many vehicle recovery situations. If you winch a lot and are concerned about weight, synthetic can be a great option since it is lightweight and easy to handle. It doesn't develop sharp burrs like steel rope, and doesn't store as much potential energy when under load. On the flip side, synthetic rope is more prone to abrasion, and should be regularly inspected for frays or other damage caused by UV, chemicals, and overall use. And when using synthetic, you always want to lay down the abrasion sleeve when needed to guard against rope damage.
Steel rope is extremely durable, and is good for both vehicle recovery and utility work, such as moving trees, rocks, etc., since it resists abrasion very well. Ultra-violet wear is also not a factor with steel rope, and it may be a better choice for you if you don't frequently use your winch. Steel rope is heavier than synthetic, can develop rust, and can also develop sharp burrs. This is one reason why we always recommend users always wear heavy gloves to protect their hands while handling the rope.
from Alhambra, CA.
I have the 12K with synthetic. Regular cable would last longer but the synthetic is so much easier to deal with. But it’s really personal preference. Either way you will be good.
Mike in Maine
Both cables will last just as long, it depends on how you take care of them. Both will fray if you scrape them against rocks. The rope is lighter and safer for use, if the line was to ever break, it would fall to the group instead of snapping like the cable. My personal preference is the rope.
from 4WP Corporate Headquarters
The dimensions for the Smittybilt XRC Gen 3 12K part number S/B98612 are roughly 27" x 14" x 10".
Thanks for checking us out, we appreciate your business.
from 4WP HQ
I noticed in the pictures, that the hook is not removable, but then the next pictures shows that it is. Can you tell me what is what?
Also, where do you run the power for the LED "running" light?
Answer this question
(1) Picture is inaccurate - you must use angle grinder to cut hook off. (2) if you have the 4 added power switches on you JEEP run the LED to the accessory wire in this bundle (located on passenger side inside engine compartment). Else, run this to the running light wire located in front of the air cleaner powering the passenger side headlight.
from Novato, CA
The hook is removable comes uninstalled in the box. As for the running lights, I guess that is personal preference.. I don't care to have it constantly on and have it wired into my warn power interrupt so the running light is only on when the winch has power.
from newport, vt
There are two contemporary powered winch types used today – electric and hydraulic. An electric winch obviously uses energy from the vehicle’s battery and the engine’s alternator. Hydraulic winches require energy from the engine’s hydraulic power steering pump.
An electric winch is exactly as its name suggests – it is electrically powered by the vehicle’s battery. The engine’s alternator replenishes the battery with electrical energy. An electric winch does not need the engine to be running, but without the replenishment of electrical energy from the engine’s alternator, a winch can quickly use up the stored electrical energy in a single battery. This is why many off-roaders and overlanders keep their engine running while winching, upgrade their vehicle’s stock battery, and add a second battery with a dual-battery isolator or computerized battery minding system. Regardless of whether you have a single or dual battery set up, electric winches need extreme deep cycle batteries, while your vehicle needs a battery with lots of cranking power. To get both features, you’ll need an exceptional battery. The battery brands Odyssey and Optima fit this category. Buy the very best battery you can.
If you purchase an electric winch for your vehicle, upgrade the stock battery to a deep cycle battery with lots of cranking power. Also, always connect both winch electrical cables, positive and negative, directly to the battery. Do not connect the negative cable to ground on the frame.
When winching for extended periods of time, an electric winch has an Achilles heel – its motor. This component can fail if you don’t pay close attention to the heat build up while you winch. Electric winches don’t have a 100 percent duty cycle (like a hydraulic winch) and need a rest occasionally from their work. This “rest” allows the electric winch cool down and build up an electrical reserve in the battery from the engine’s alternator.
Of the two types of modern, recreational powered winches – electrical and hydraulic – the electrical winch is by far the most popular. More companies make recreational electrical winches than hydraulic. There are also more models of electrical winches on the market. This is because electrical winches are the best choice for the majority of off-roaders and overlanders. First, compared to hydraulic winches, the installation of an electrical winch is less intimidating to most home garage mechanics. Second, electrical winches are more ideal for leisure and occasional users. As a recreationalist you don’t typically need to winch an extended period of time. Typically, you will pull yourself out from a stuck situation or over difficult terrain and move on. However, if you need to winch for hours on end, then perhaps you should consider a hydraulic winch.
from Alhambra, CA.
I would assume that bumper has the universal winch mount, so again to assume this would work. The only thing is it comes with a permanent shackle on the winch line, I cut mine off to put a factor 55 one on.
